| Races | 17 |
| Drivers' Titles | 0 |
| Constructors' Titles | 0 |
| Victories | 0 |
| Poles | 0 |
| Fastest Laps | 0 |
| Podiums | 0 |
| Points | 8 |
| Laps | 1902 |
| One/two finishes | 0 |
| Year | Race | Nr | Driver | Team | Constructor | Model | Engine | Spec | Gr | Ps | Fastest Lap | Led | Retired | Pts | Formula | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 2020 | GBR | 7 | Kimi Räikkönen | Alfa Romeo Racing ORLEN | Alfa Romeo | C39 | Ferrari | 065 V6T H 1.6 | 16 | 17 | 01:29.973 | 0 | F1 | ||
| 3 | 2020 | HUN | 7 | Kimi Räikkönen | Alfa Romeo Racing ORLEN | Alfa Romeo | C39 | Ferrari | 065 V6T H 1.6 | 20 | 15 | 01:20.232 | 0 | F1 | ||
| 88 | Robert Kubica | Alfa Romeo Racing ORLEN | Alfa Romeo | C39 | Ferrari | 065 V6T H 1.6 | 0 | T | Practice | 0 | F1 | |||||
| 2 | 2020 | STY | 7 | Kimi Räikkönen | Alfa Romeo Racing ORLEN | Alfa Romeo | C39 | Ferrari | 065 V6T H 1.6 | 16 | 11 | 01:08.382 | 0 | F1 | ||
| 1 | 2020 | AUT | 7 | Kimi Räikkönen | Alfa Romeo Racing ORLEN | Alfa Romeo | C39 | Ferrari | 065 V6T H 1.6 | 19 | DNF | 01:09.031 | Front wheel lost | 0 | F1 |

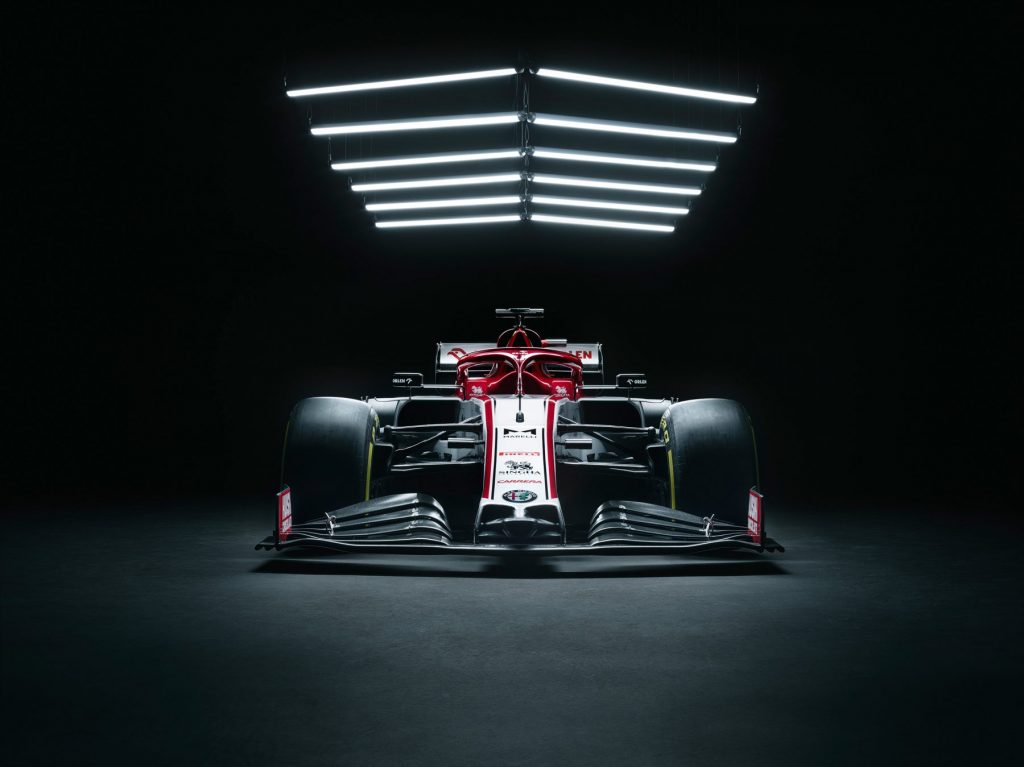

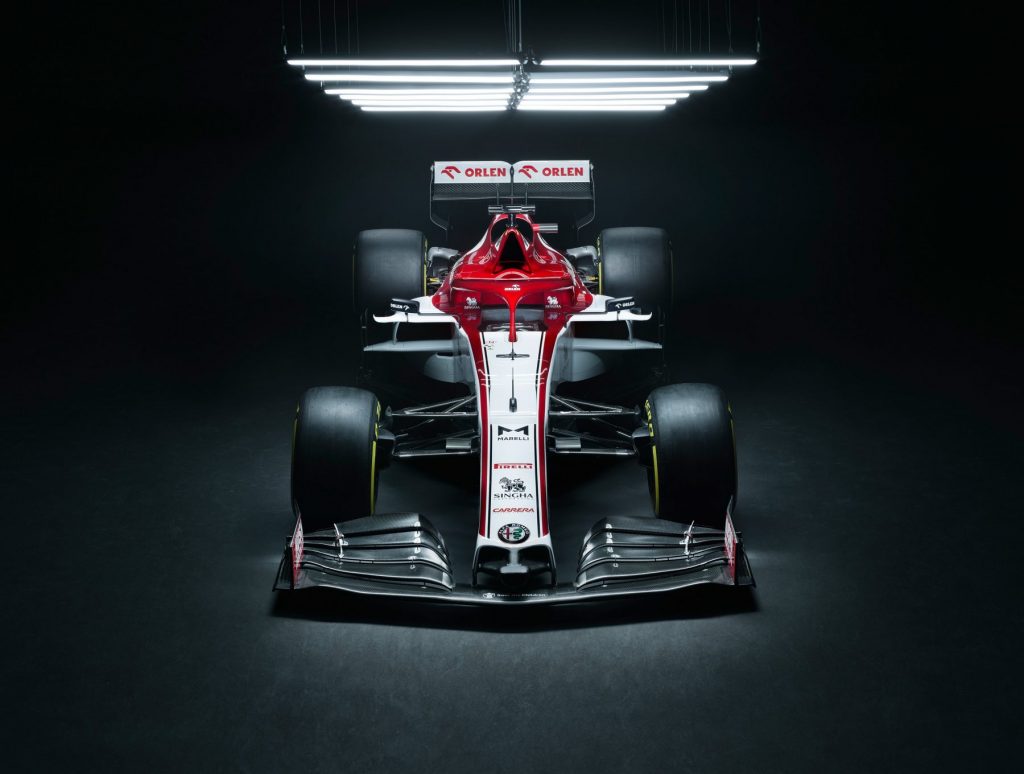

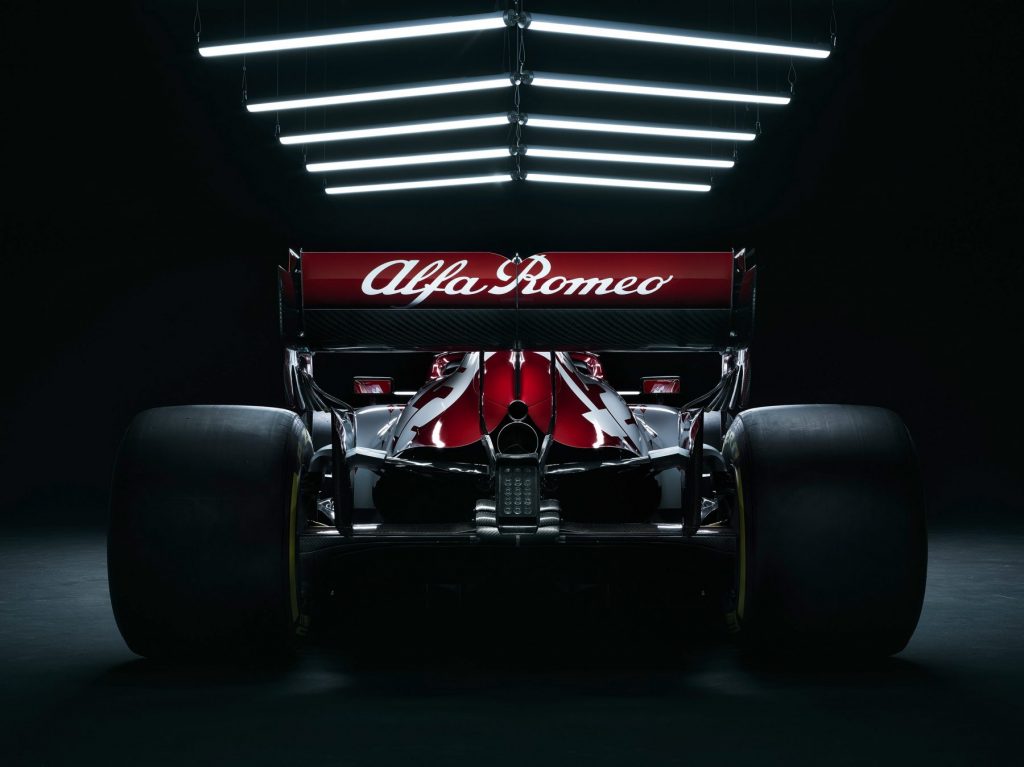

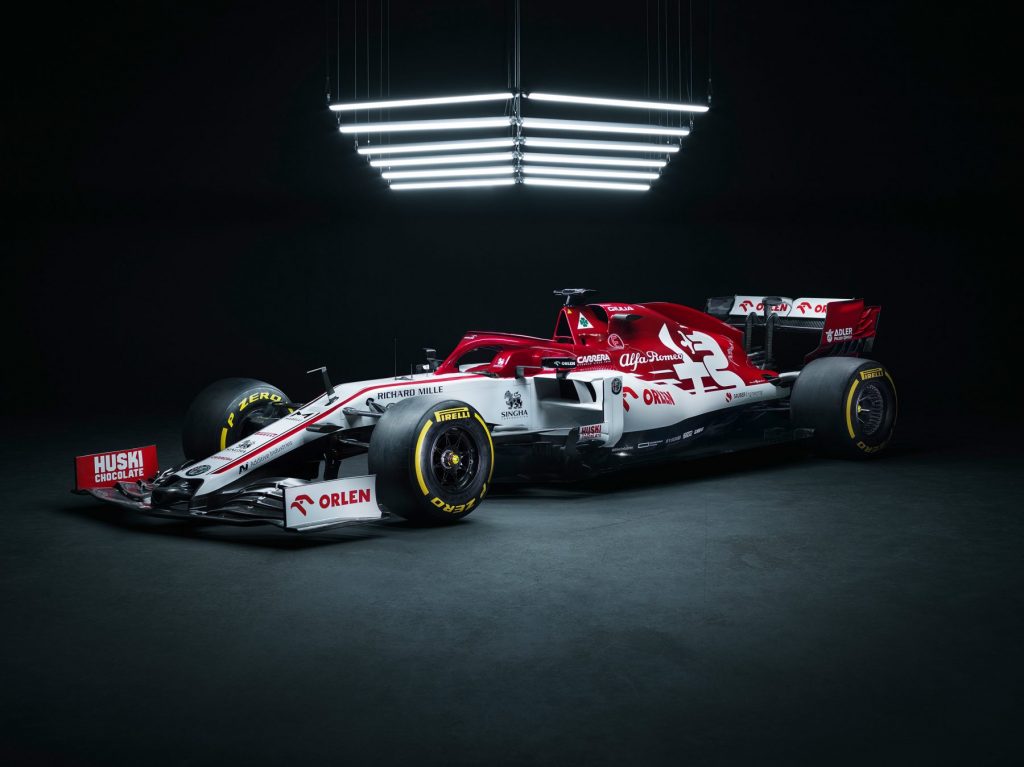

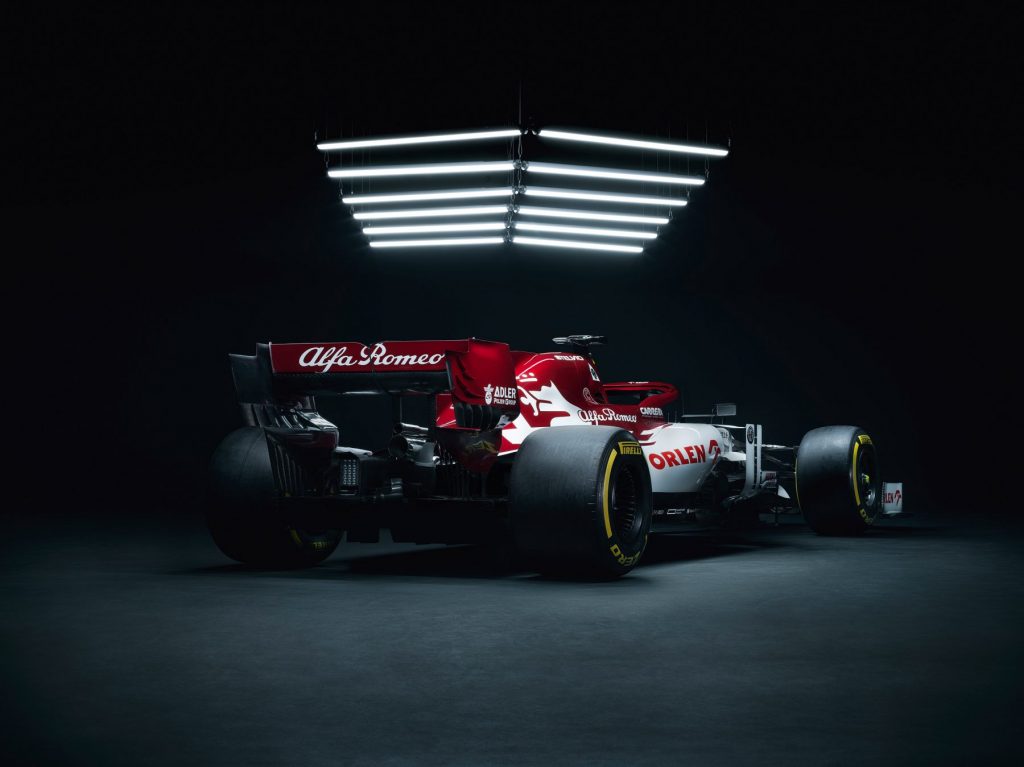

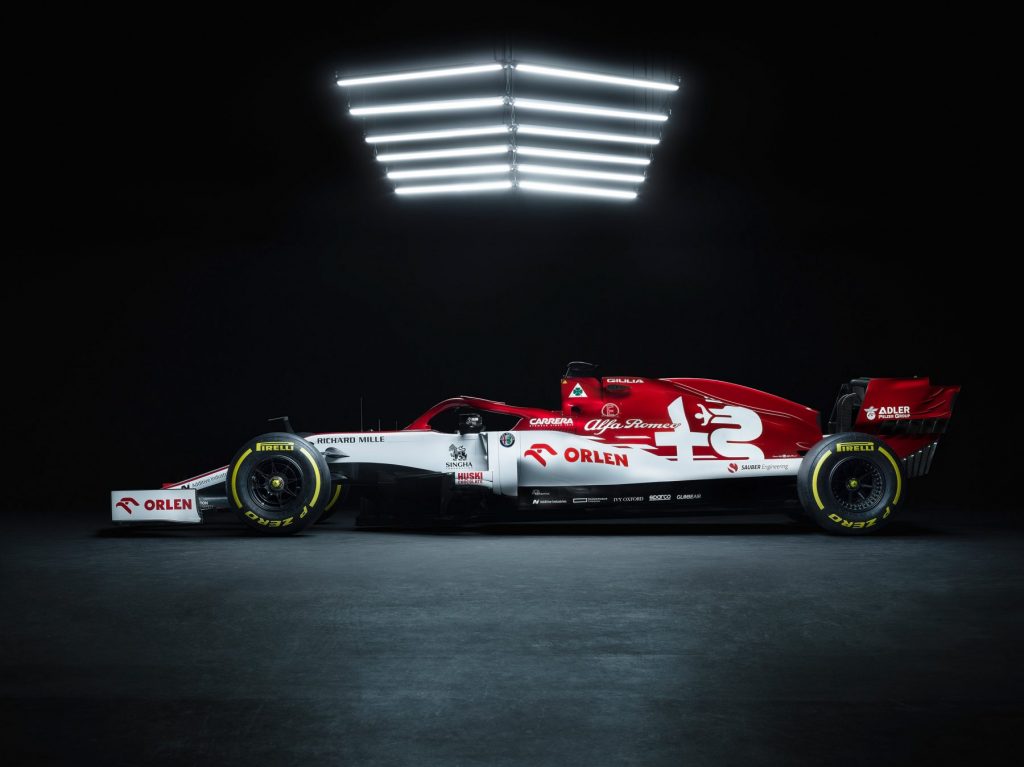

ALFA ROMEO C39
TITLE SPONSORS
Alfa Romeo • PKN Orlen
OFFICIAL PARTNERS
Adler Pelzer Group • Carrera • Richard Mille • Singha Beer
TEAM SUPPLIERS
Additive Industries • Huski Chocolate • Ivy Oxford • GlobeAir • Hewlett Packard Enterprise • Iveco • Marelli
Mitsubishi Electric • Pirelli • Save The Children • Sparco • Walter Meier • 3D Systems • AB Dynamics • Brutsch/Ruegger
Carbon Connect • Interroll • Quintus • Riedel • Singapore Airlines • Qunitus Technologies
CHASSIS
Survival Cell Alfa Romeo Racing Orlen Carbon-composite monocoque
Front suspension Double wishbone, inboard spring and Multimatics damper units actuated by pushrods
Rear suspension Multilink, inboard hydraulic suspension actuated by pullrods
Dampers ZF Sachs
Wheels OZ Racing
Tyres Pirelli P Zero
Brakes 6 piston Brembo brake callipers, carbon-composite and discs and pads (Carbon Industries)
TRANSMISSION
Ferrari 8-speed quick-shift carbon gearbox, longitudinally mounted, carbon-composite clutch
Electronics Magneti Marelli, McLaren Electronic Systems, Bosch
ERS Ferrari
Steering wheel Alfa Romeo Racing
Driver’s Pedals and Seat Alfa Romeo Racing
DIMENSIONS
Length >5,500 mm
Width <2,000 mm
Wheelbase Approximately 3,600 mm
Height (without overhead camera) 950 mm
Track width, front 1,650 mm
Track width, rear 1,550 mm
Weight 746kg minimum weight including driver at all times
POWER UNIT
Type 2020 Ferrari Hybrid
Configuration: V6 90°
Displacement: 1600 cc
Bore: 80 mm
Stroke: 53 mm
Valves: 4 per cylinder
Maximum revs: 15,000 rpm
Turbo charging: Single Turbine and compressor
Maximum fuel flow: 100 kg/h
Maximum fuel capacity: 120kg of which 110kg max usable during the race
Injection: 500 bar – direct
Units per driver: 3
ERS System
Battery Energy (per lap): 4 MJ
MGU-K power: 120 kW
MGU-K maximum revs: 50,000 rpm
MGU-H maximum revs: 120.000 rpm
