| Races | 22 |
| Drivers' Titles | 0 |
| Constructors' Titles | 0 |
| Victories | 0 |
| Poles | 0 |
| Fastest Laps | 1 |
| Podiums | 0 |
| Points | 16 |
| Laps | 2473 |
| One/two finishes | 0 |
| Year | Race | Nr | Driver | Team | Constructor | Model | Engine | Spec | Gr | Ps | Fastest Lap | Led | Retired | Pts | Formula | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 2023 | MIA | 24 | Zhou Guanyu | Alfa Romeo F1 Team Stake | Alfa Romeo | C43 | Ferrari | 066/10 V6T H 1.6 | 14 | 16 | 01:31.736 | 0 | F1 | ||
| 4 | 2023 | AZE | 24 | Zhou Guanyu | Alfa Romeo F1 Team Stake | Alfa Romeo | C43 | Ferrari | 066/10 V6T H 1.6 | 15 | DNF | 01:47.553 | Withdrawn | 0 | F1 | |
| 3 | 2023 | AUS | 24 | Zhou Guanyu | Alfa Romeo F1 Team Kick | Alfa Romeo | C43 | Ferrari | 066/10 V6T H 1.6 | 17 | 9 | 01:21.819 | 2 | F1 | ||
| 2 | 2023 | SAU | 24 | Zhou Guanyu | Alfa Romeo F1 Team Stake | Alfa Romeo | C43 | Ferrari | 066/10 V6T H 1.6 | 11 | 13 | 01:33.894 | 0 | F1 | ||
| 1 | 2023 | BHR | 24 | Zhou Guanyu | Alfa Romeo F1 Team Stake | Alfa Romeo | C43 | Ferrari | 066/10 V6T H 1.6 | 13 | 16 | 01:33.996 | 0 | F1 |

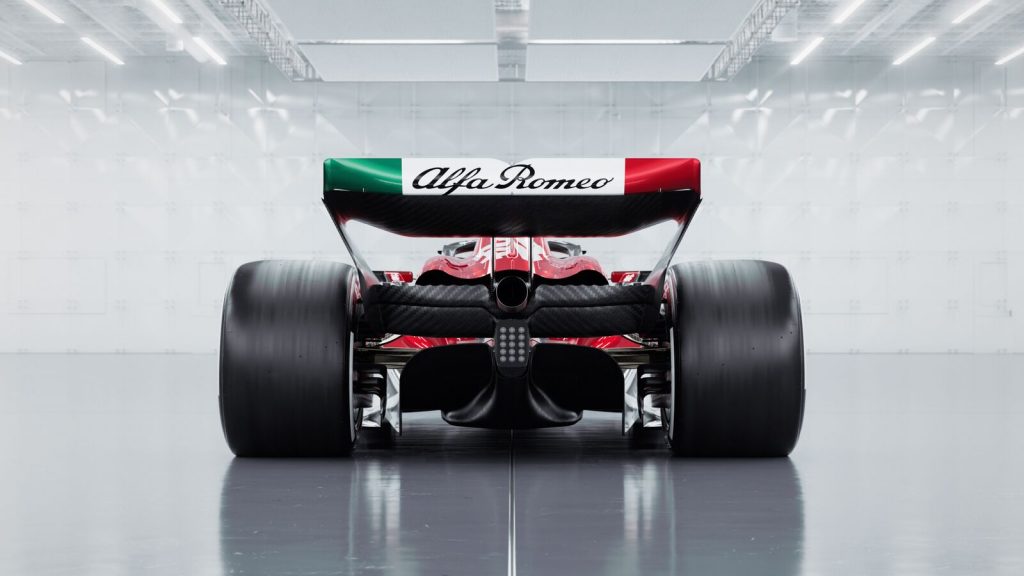

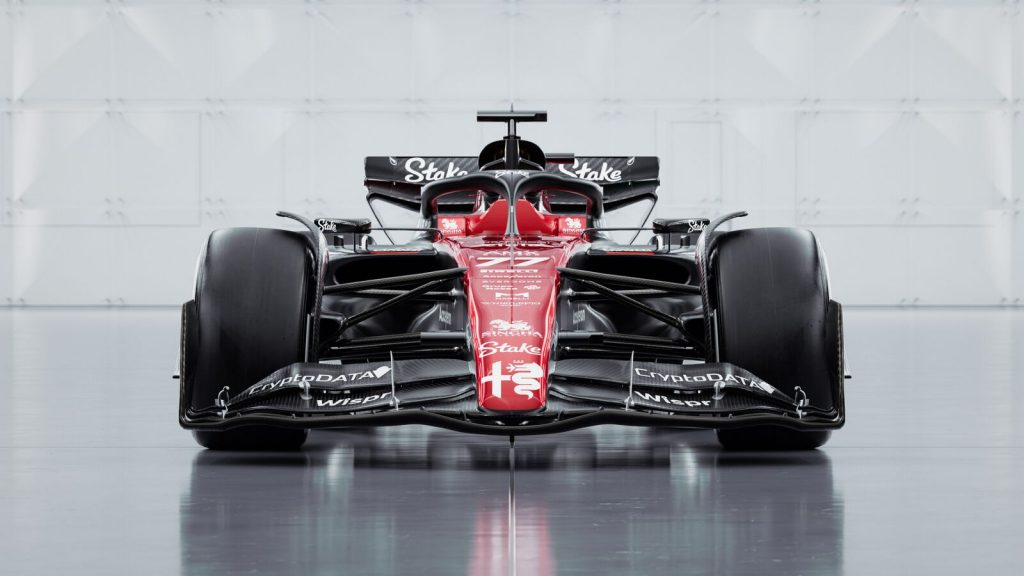

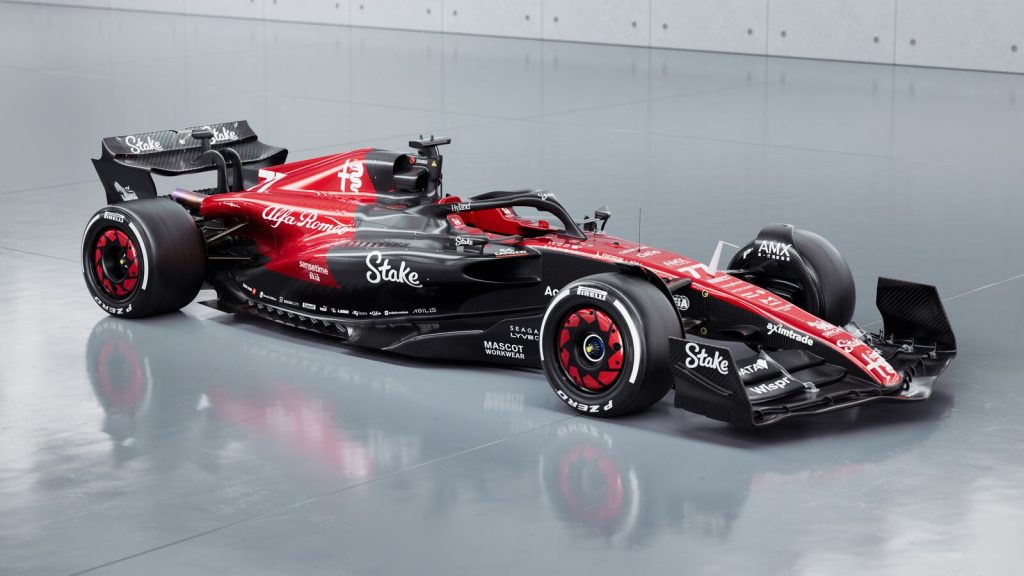

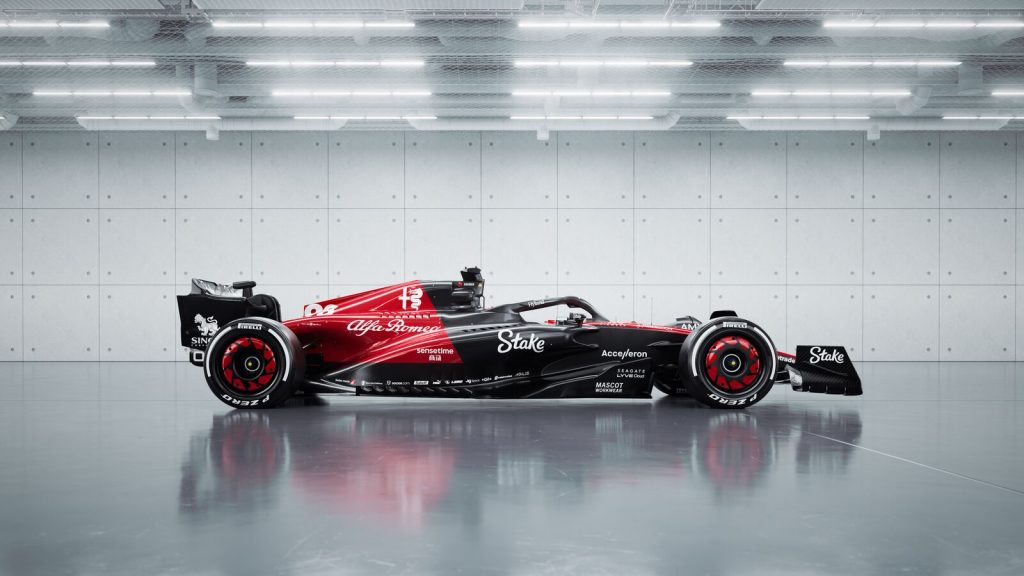

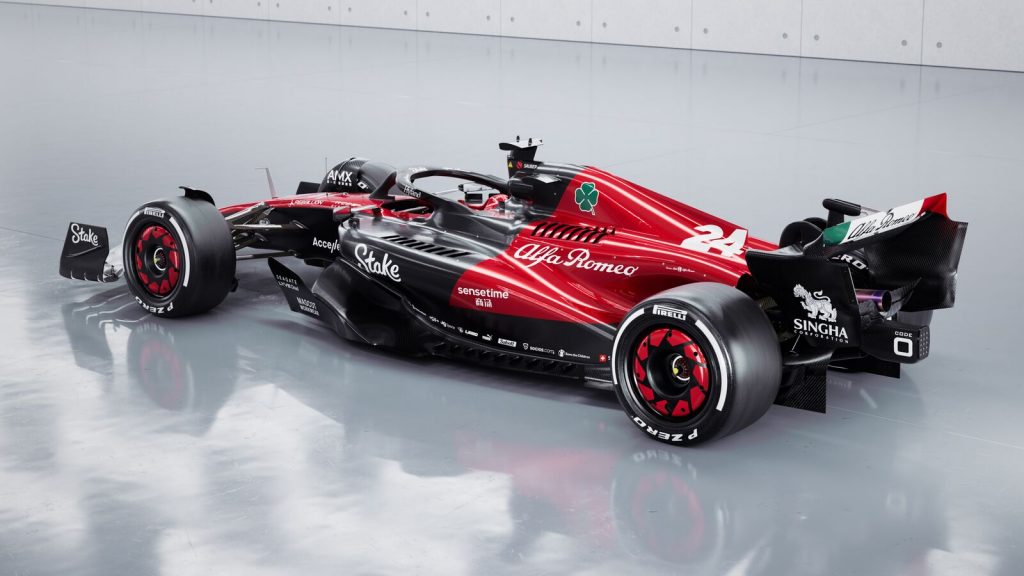

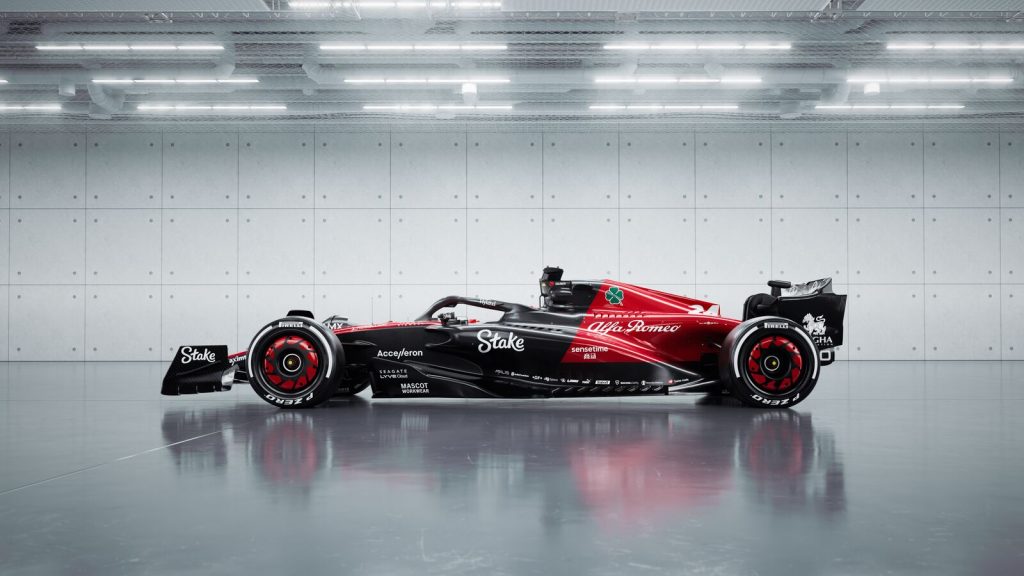

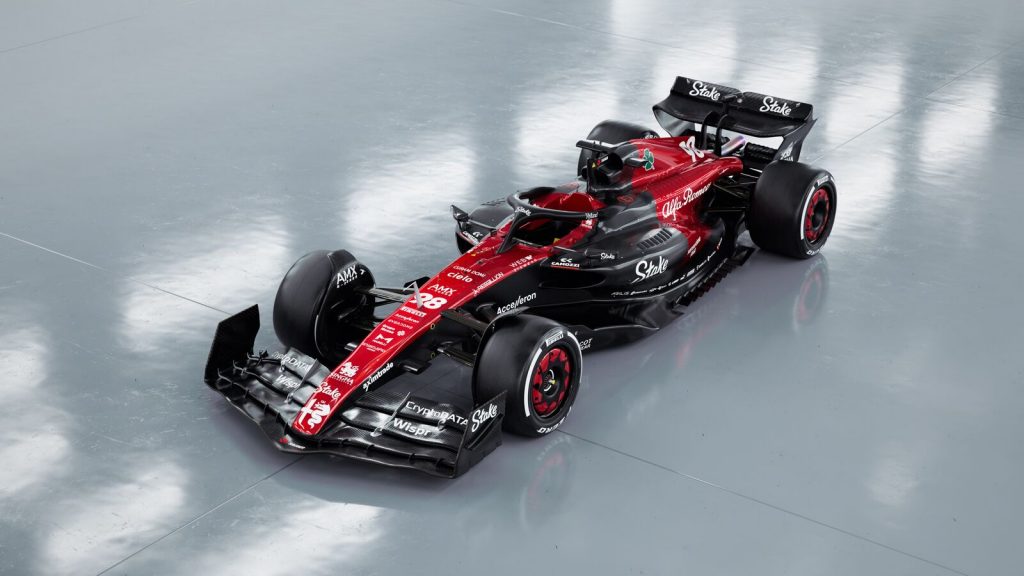

ALFA ROMEO C43
TITLE SPONSORS
Alfa Romeo Stake
MAIN PARTNER
KICK
OFFICIAL PARTNERS
Acceleron • Additive Industries • AGILIS • Ambrosial • Assos • Camozzi • Cielo • Ciesse Piumini • Code Zero • Delsey • Edelweiss • Everdome • Ferrari Trento • Georg Fischer
Globeair • Hewlett Packard Enterprise • Hyland • Iveco • Jigspace • Kick Out Plastic • Marelli • Mascot Workwear • MindMaze Labs • Mitsubishi Electric • Pirelli • ProTech MC
Puma • Rebellion Timepieces • Sabelt • Salt • Save The Children • Sensetime • Singha • Socios • Walter Meier • Web Eyewear • Whistle Pig
TEAM SUPPPLIERS
Brütsch-Rüegger • Riedel
Survival cell ARF1TS moulded carbon fibre composite structure incorporating ATL fuel cell bladder
Safety structures Intrusion protected monocoque, impact absorbing front, side and rear structures, principal roll structure (roll hoop), secondary roll structure (halo)
Cockpit Bespoke carbon fibre composite seat, Sabelt 6-point safety harness
Front suspension Carbon fibre double wishbone, pushrod-activated inboard torsion springs, rockers and Öhlins damper units
Rear suspension Carbon fibre double wishbone, pushrod-activated inboard torsion springs, rockers and Öhlins damper units
Brake system Brembo brake calipers, carbon discs and pads, rear brake by wire control
Steering System Power-assisted rack and pinion, customised carbon fibre steering wheel
Electronics FIA approved electronics, electrical system including FIA standard ECU
Power unit Ferrari hybrid turbo V6
Energy Recovery System Ferrari hybrid energy recovery system via electrical Motor Generator Units
Gearbox Alfa Romeo F1 Team Stake carbon fibre maincase with Ferrari cassette containing eight forward speeds and one reverse
Gear Selection Sequential, semi-automatic
Clutch Carbon composite
Wheels 18” BBS, 18in diameter
Tyres Pirelli P Zero
Dimensions & weight
Overall Length >5,500 mm
Overall Width 2,000 mm
Overall Height 970 mm
Front track: 1650mm
Rear track: 1550mm
Wheelbase ≤3,600 mm
Weight 798kg, including driver and camera
Ferrari power unit
Configuration 90° V6
Displacement 1,600 cc
Bore 80 mm
Stroke 53 mm
Valves 4 per cylinder
Turbo charging Single Turbine and compressor
Maximum fuel flow 100 kg/h
Injection 500 bar – direct
Ferrari Energy Recovery System
Architecture Hybrid energy recovery system via electrical Motor Generator Units, MGU-H and MGU-K
Energy Store Lithium-Ion battery, ≥20kg
Max Energy Deployment 4 MJ per lap
MGU-K Max Power 120 kW (161hp)
MGU-K Max RPM 50,000 rpm
MGU-H Max RPM 125,000 rpm
