Races | 19 |
Drivers' Titles | 1 |
Constructors' Titles | 1 |
Victories | 16 |
Poles | 18 |
Fastest Laps | 13 |
Podiums | 17 |
Points | 703 |
Laps | 2220 |
Laps Led | 936 |
One/two finishes | 12 |

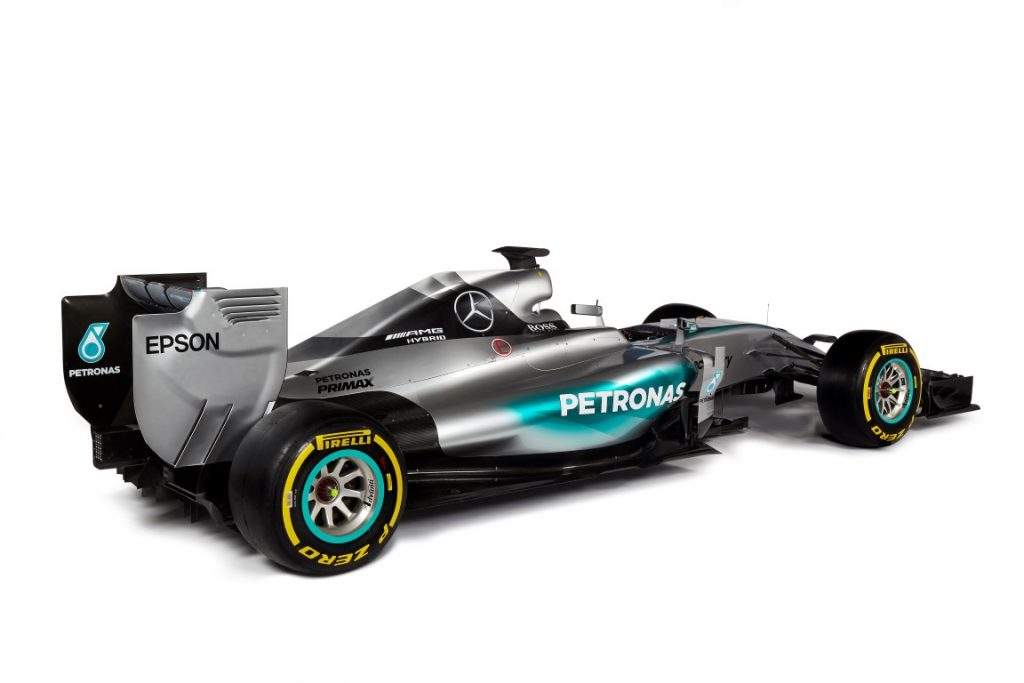

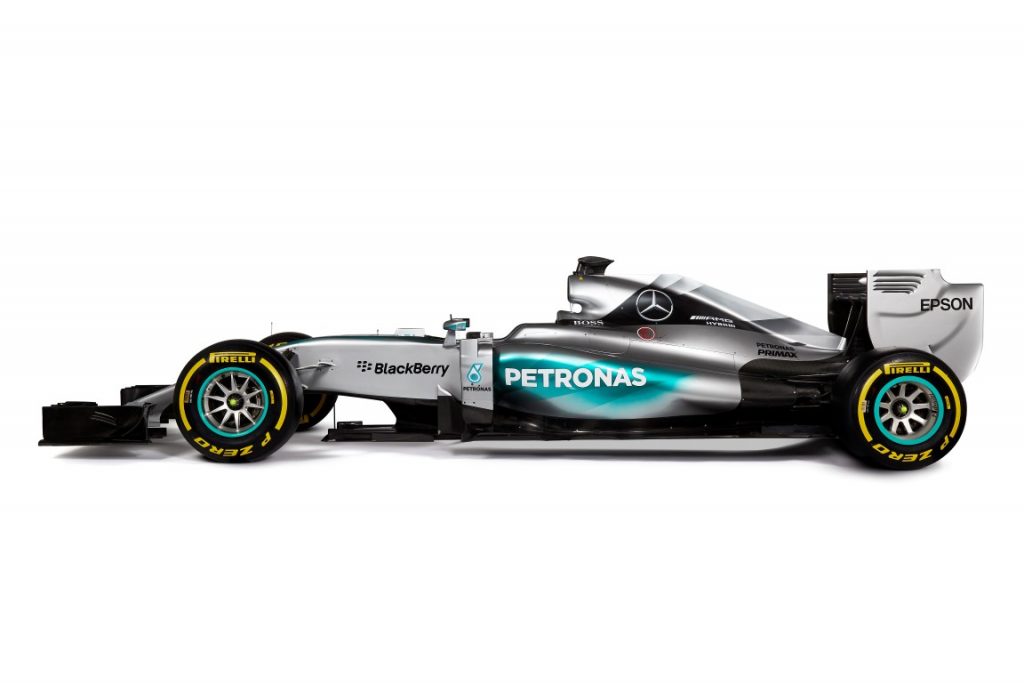

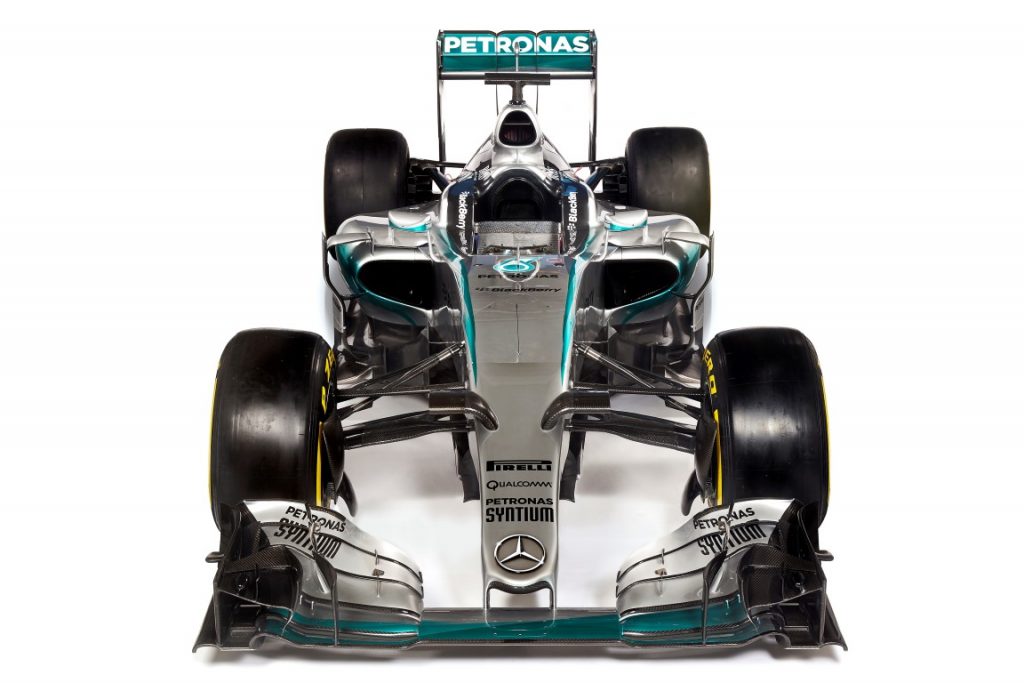

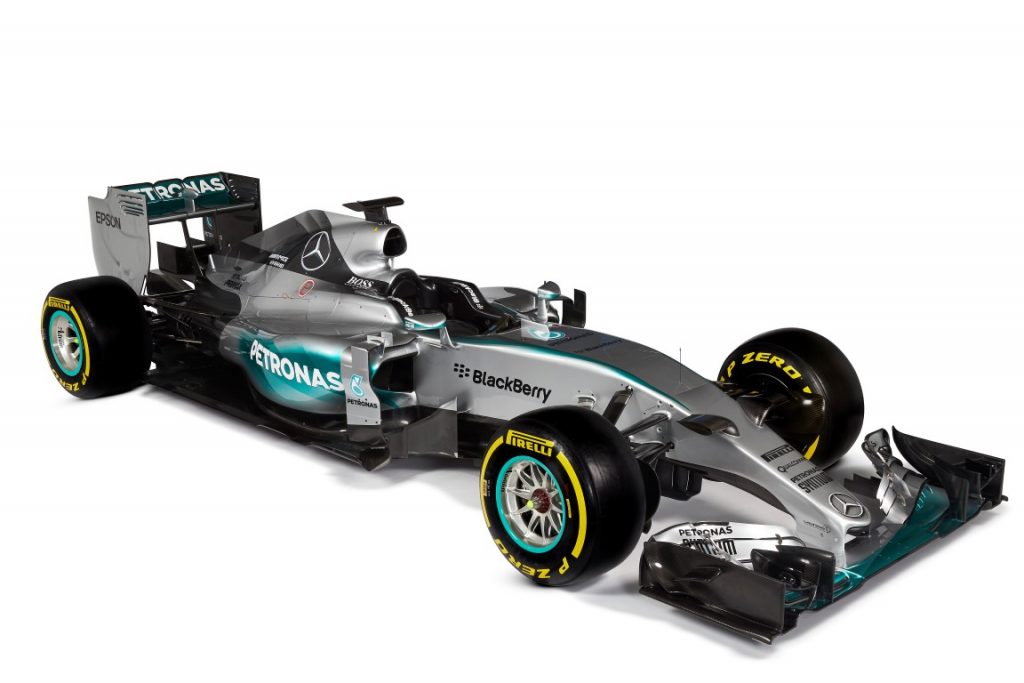

MERCEDES F1 W06 HYBRID
PARTNERS
Petronas • Blackberry • UBS • Qualcomm • Allianz • Epson
TEAM PARTNERS
Hugo Boss • IWC Schaffhausen • Monster Energy • Starwood Preferred Guest • Puma • ebm-papst • Bose • Pirelli • Tumi
Tata Communications • DB Schenker • Assos • Spies Hecker • Schuberth • Advanti • Endless • USI Italia
CHASSIS
Monocoque: Moulded carbon fibre and honeycomb composite structure
Bodywork: Carbon fibre composite including engine cover, sidepods, floor, nose, front wing and rear wing
Cockpit: Removable driver’s seat made of anatomically formed carbon composite, Sabelt six-point driver safety harness, HANS system
Safety Structures: Cockpit survival cell incorporating impact resistant construction and penetration panels, front impact structure, prescribed side impact structures, integrated rear impact structure, front and rear roll structures
Front Suspension: Carbon fibre wishbone and pushrod activated torsion springs and rockers
Rear Suspension: Carbon fibre wishbone and pullrod activated torsion springs and rockers
Dampers: Penske
Wheels: Advanti forged magnesium
Tyres: Pirelli P Zero
Brake System: Carbon / carbon discs and pads with rear brake-by-wire
Brake Calipers: Brembo
Steering: Power assisted rack and pinion
Steering Wheel: Carbon-fibre construction
Electronics: FIA standard ECU and FIA homologated electronic and electrical system
Instrumentation: McLaren Electronic Systems (MES)
Fuel System: ATL Kevlar-reinforced rubber bladder
TRANSMISSION
Gearbox: Eight-speed forward, one reverse unit with carbon fibre maincase
Gear selection: Sequential, semi-automatic, hydraulic activation
Clutch: Carbon plate
DIMENSIONS
Overall length: 5000mm
Overall height: 950mm
Overall width: 1800mm
Overall weight: 702kg, including driver and camera
POWER UNIT
Type: Mercedes-Benz PU106B Hybrid
Minimum Weight: 145 kg
Power Unit Perimeter: Internal Combustion Engine (ICE)
Motor Generator Unit – Kinetic (MGU-K)
Motor Generator Unit – Heat (MGU-H)
Energy Store (ES)
Turbocharger (TC)
Control Electronics (CE)
Power Unit Allocation: Four Power Units per driver per season
Internal Combustion Engine
Capacity: 1.6 litres
Cylinders: Six
Bank Angle: 90º
No of Valves: 24
Max rpm ICE: 15,000 rpm
Max Fuel Flow Rate: 100 kg/hour (above 10,500 rpm)
Fuel Injection: High-pressure direct injection (max 500 bar, one injector/cylinder)
Pressure Charging: Single-stage compressor and exhaust turbine on a common shaft
Max rpm Exhaust Turbine: 125,000 rpm
Energy Recovery System
Architecture: Integrated Hybrid energy recovery via electrical Motor Generator Units
Energy Store: Lithium-Ion battery solution, between 20 and 25 kg
Max energy storage/lap: 4 MJ
Max rpm MGU-K: 50,000 rpm
Max power MGU-K: 120 kW (161 hp)
Max energy recovery/lap MGU-K: 2 MJ
Max energy deployment/lap MGU-K: 4 MJ (33.3 s at full power)
Max rpm MGU-H: 125,000 rpm
Max power MGU-H: Unlimited
Max energy recovery/lap MGU-H: Unlimited
Max energy deployment/lap MGU-H: Unlimited
Fuel & Lubricants
Fuel: PETRONAS Primax
Lubricants: PETRONAS Syntium
Gearbox & hydraulic oil: PETRONAS Tutela
