| Races | 19 |
| Drivers' Titles | 1 |
| Constructors' Titles | 1 |
| Victories | 13 |
| Poles | 11 |
| Fastest Laps | 12 |
| Podiums | 17 |
| Points | 596 |
| Laps | 2169 |
| Laps Led | 753 |
| One/two finishes | 4 |
| Year | Race | Nr | Driver | Team | Constructor | Model | Engine | Spec | Gr | Ps | Fastest Lap | Led | Retired | Pts | Formula | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 2013 | BRA | 2 | Mark Webber | Infiniti Red Bull Racing | Red Bull Racing | RB9 | Renault | RS27 V8 2.4 | 4 | 2 | 01:15.436 | 18 | F1 | ||
| 4 | 2013 | USA | 2 | Mark Webber | Infiniti Red Bull Racing | Red Bull Racing | RB9 | Renault | RS27 V8 2.4 | 2 | 3 | 01:40.591 | 15 | F1 | ||
| 3 | 2013 | ABU | 2 | Mark Webber | Infiniti Red Bull Racing | Red Bull Racing | RB9 | Renault | RS27 V8 2.4 | 1 | 2 | 01:44.364 | 18 | F1 | ||
| 2 | 2013 | IND | 2 | Mark Webber | Infiniti Red Bull Racing | Red Bull Racing | RB9 | Renault | RS27 V8 2.4 | 4 | DNF | 01:29.500 | 21 | Alternator | 0 | F1 |
| 1 | 2013 | JPN | 2 | Mark Webber | Infiniti Red Bull Racing | Red Bull Racing | RB9 | Renault | RS27 V8 2.4 | 1 | 2 | 01:34.587 | 5 | 18 | F1 |

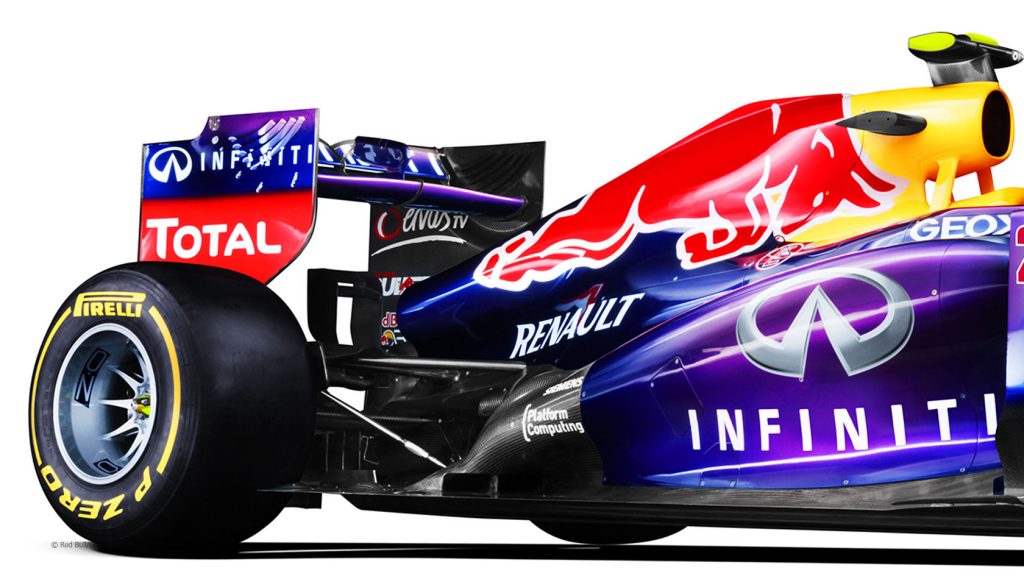

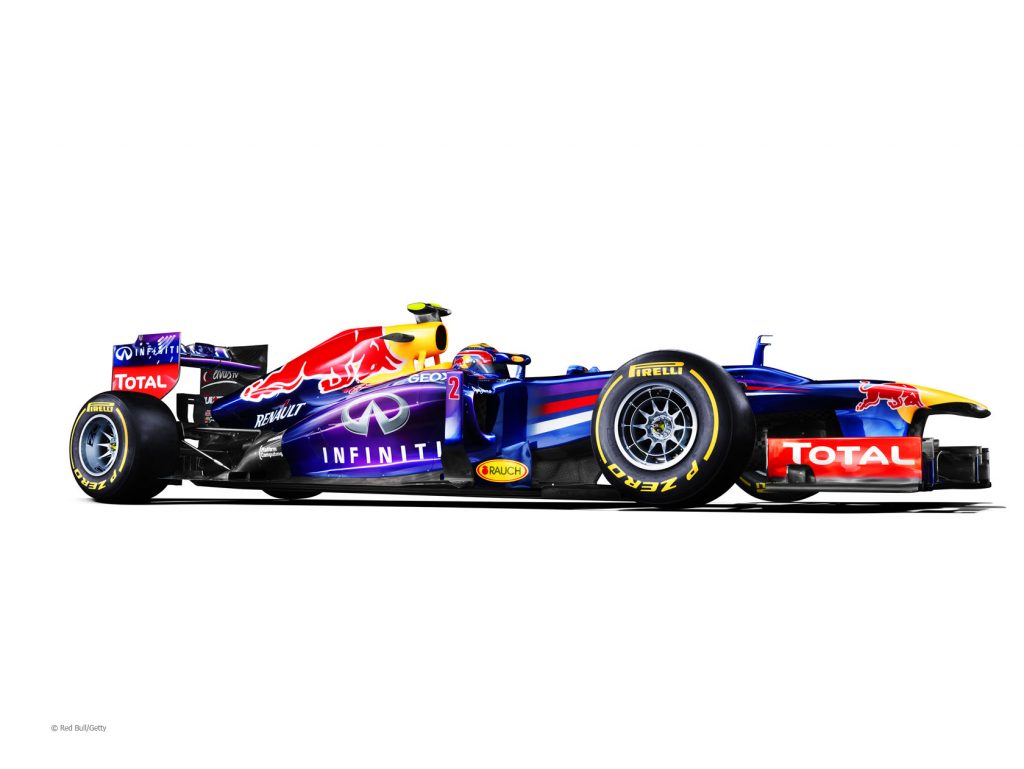

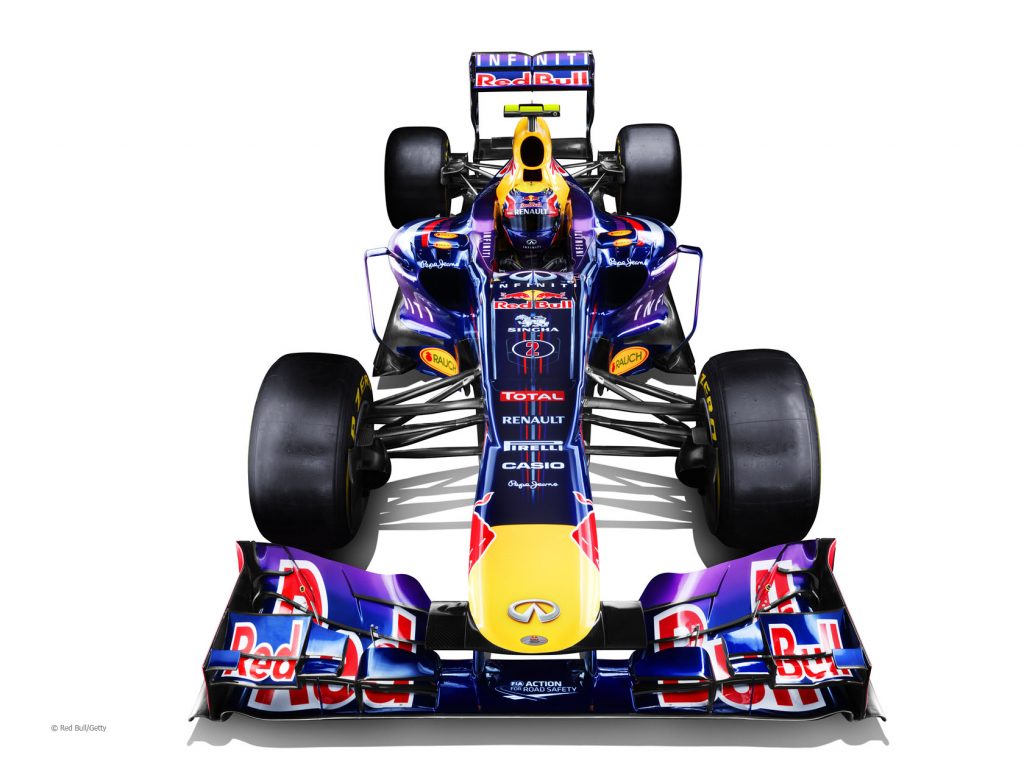

RED BULL RB9
TITLE PARTNER
Infiniti
TEAM PARTNERS
Total • Renault • Rauch • Geox • Pepe Jeans • Casio • Singha Beer
INNOVATION PARTNERS
IBM Platform Computing • Siemens • ANSYS • Hexagon Metrology • DMG Mori Seiki • OZ Wheels • PWR Performance
TEAM SUPPLIERS
Nissan • AT&T • Pirelli • Alpinestars • Red Bull Racing Eyeware • Sonax • Joraku • Sanp-on • Sabelt • Matrix • Sennheiser
TRANSMISSION
Seven-speed gearbox, longitudinally mounted with hydraulic system for power shift and clutch operation. AP Racing clutch
CHASSIS
Composite monocoque structure, designed and built in-house, carrying the Renault V8 engine as fully stressed member
Suspension
Front:Aluminium alloy uprights, carbon-composite double wishbone with springs and anti-roll bar, Multimatic dampers
Rear: Aluminium alloy uprights, carbon-composite double wishbone with springs and anti-roll bar, Multimatic dampers
Brakes
Brembo calipers. Carbon discs and pads
Electronics
MESL standard control unit
Wheels
OZ Racing
Front: 12.0in x 13in diam.
Rear: 13.7in x 13in diam.
Tyres
Pirelli P Zero

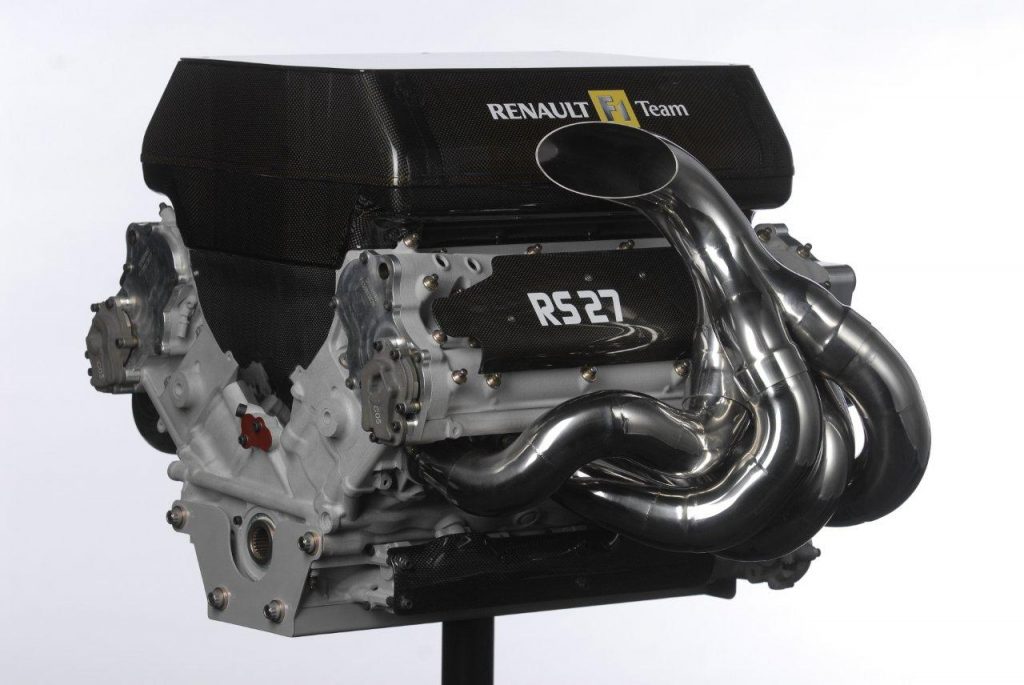

ENGINE
Type: Renault Engine R27-2013
Cylinders: 8
Capacity: 2400cc
Max rpm: 18,000rpm
Number of Valves: 32
Vee Angle: 90 degrees
Power Output: Not disclosed
Engine construction: Cylinder block in cast aluminium
Engine management: MESL standard control unit TAG320
Fuel: Total Group
Oil: Total Group
Weight: FIA minimum weight of 95kg
DIMENSIONS
Dimensions: note disclosed
Wheelbase: not disclosed
Formula Weight: 642kg, including driver and camera
