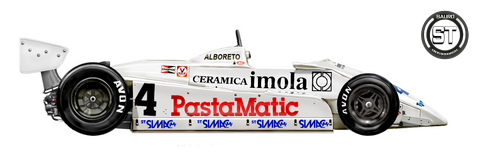

Sponsors: Imola Ceramica, Pastamatic TRANSMISSION Gearbox: Hewland/Tyrrell five-speed Driveshafts: Tyrrell/Löbro Clutch: AP CHASSIS Front suspension: Top rocker arms, lower wishbones, inboard springs Rear suspension: Top rocker arms, lower wishbones, inboard springs Suspension dampers: Koni Wheel diameter: front: 13 in./15 in. rear: 13 in./15 in. Wheel rim widths: front: 11 in. rear: 16 in. Tyres: Goodyear/Avon Brakes: AP Brake pads: Ferodo Steering: Knight Radiators: Serck/Sofica Fuel tank: Aerotech/Marston Battery: Yuasa Instruments: Smiths/Contactless DIMENSIONS Wheelbase: 106 in.-108 in./2692-2743 mm Track: front: 68 in./1727 mm rear: 63.5 in/1613 mm Gearbox weight: 112 lb/51 kg Chassis weight (tub): 90 lb/41 kg Formula weight: 1290 lb/586 kg Fuel capacity: 40 gal/181 litres Fuel consumption: 5-6 mpg – 47-57 litres/100 km ENGINE Type: Ford Cosworth DFV No. of cylinders: V8 Bore and stroke: 85.6 mm x 64.8 mm Capacity: 2993 cc Compression ratio: 12:1 Maximum power: 470 bhp (minimum) Maximum rpm: 11,100 Valve sizes: 34.50 mm x 2/29 mm x 2 Valve lift: 10.4 mm Valve timing: 102° Pistons and rings: Cosworth Bearings: Vandervell Fuel injection: Lucas Ignition system: Lucas/Contactless Weight: 360 lb/163 kg Fuel and oil: Valvoline Sparking plugs: Champion
Races
7
Race Starts
5
Drivers' Titles
0
Constructors' Titles
0
Victories
0
Poles
0
Fastest Laps
0
Podiums
0
Points
2
Laps
379
One/two finishes
0
StatisticsGPs12Specifications
