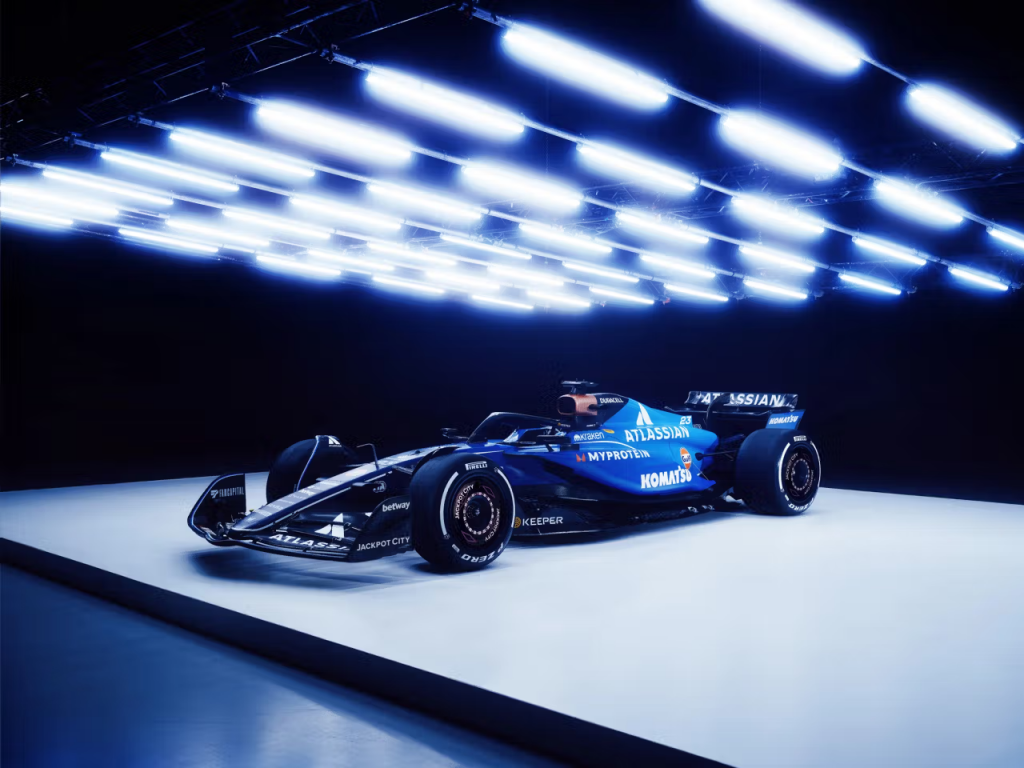

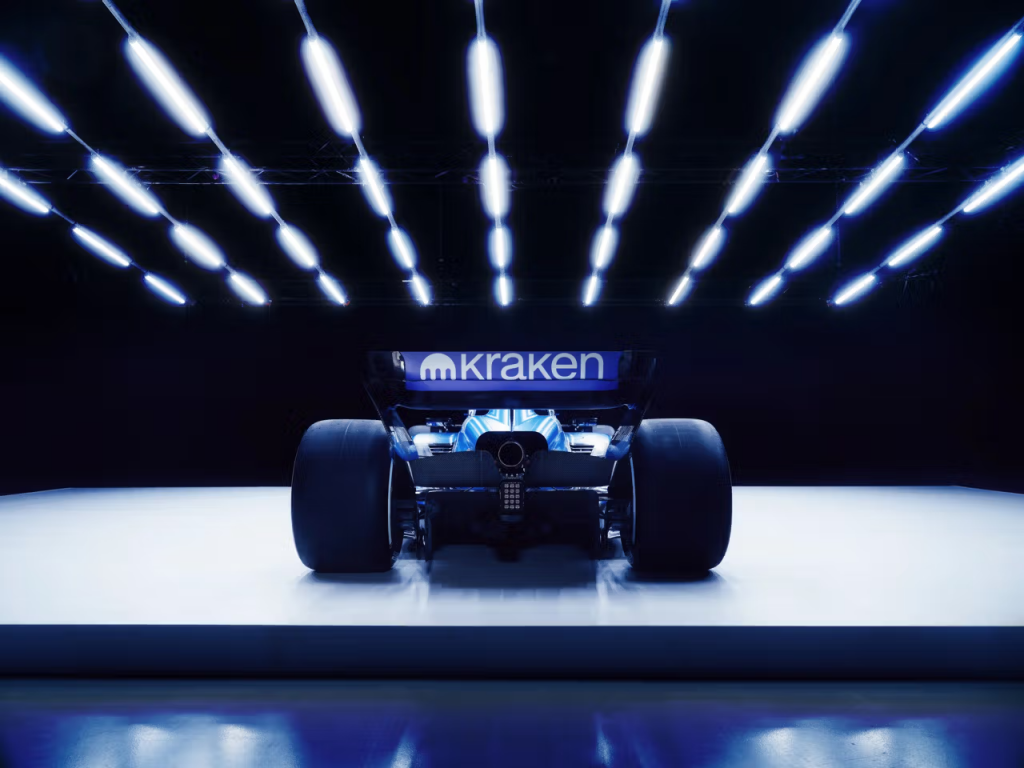

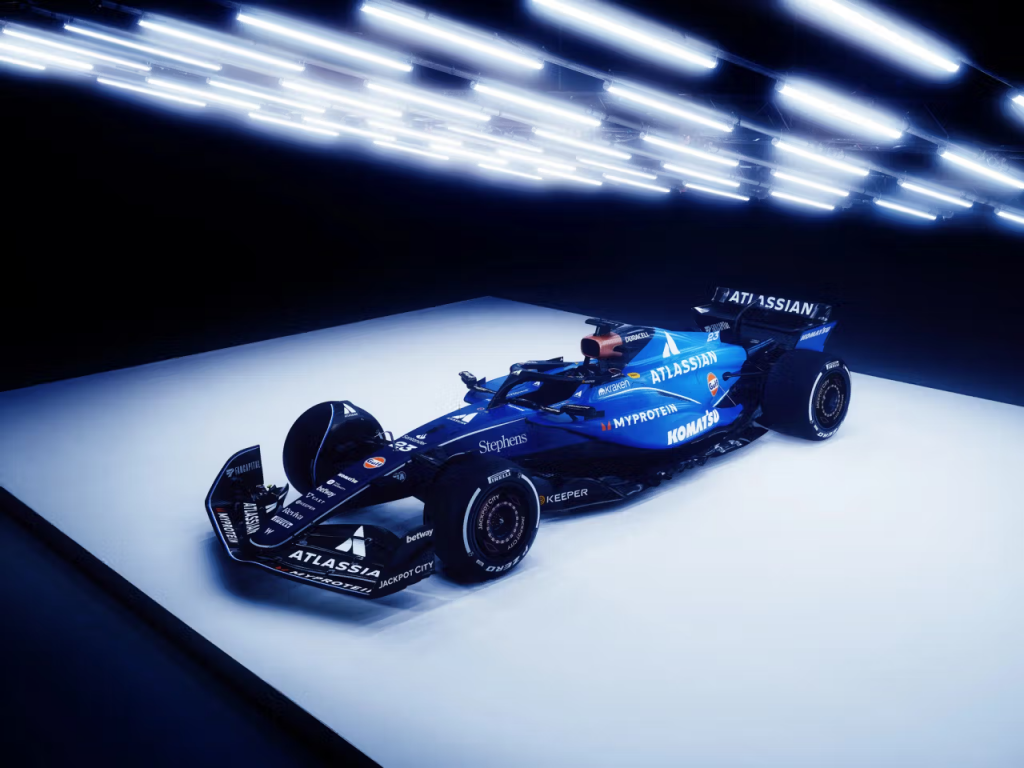

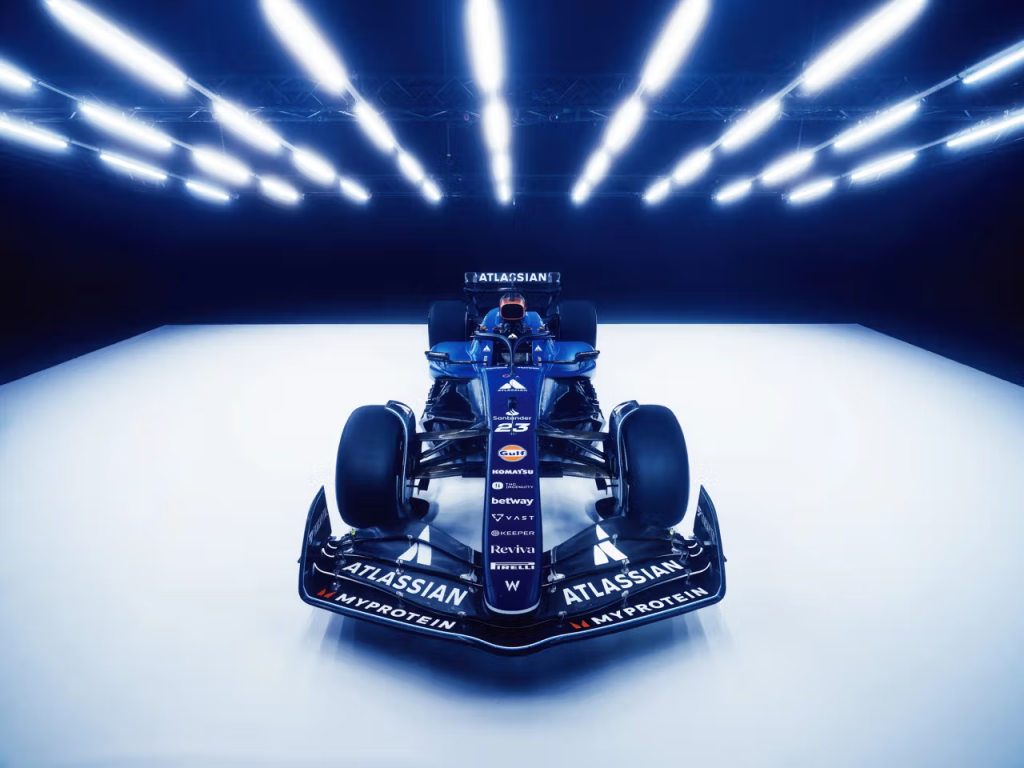

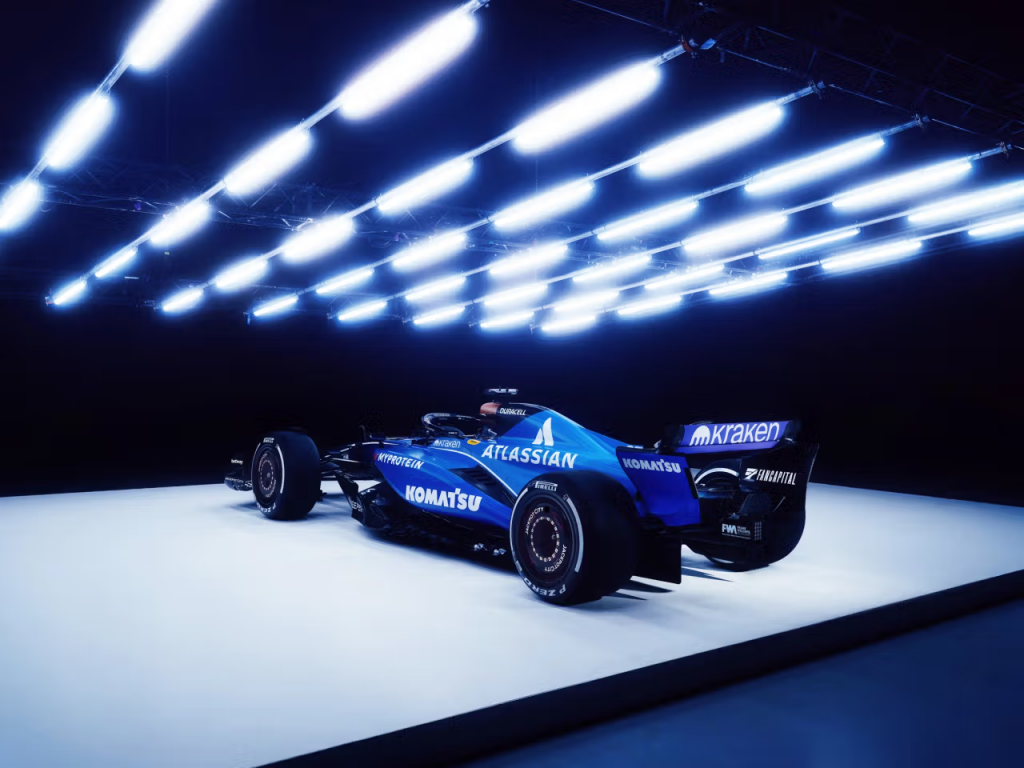

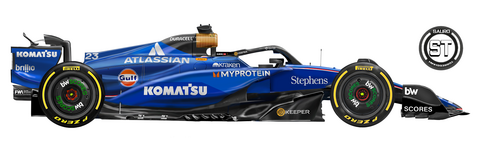

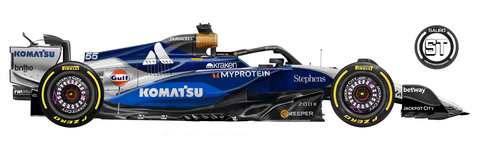

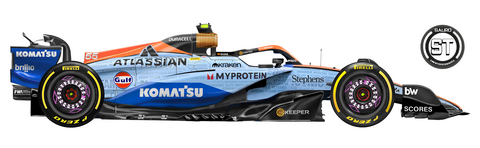

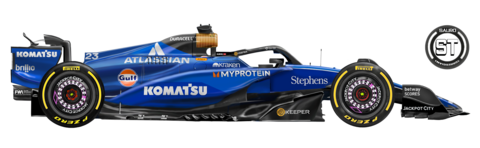

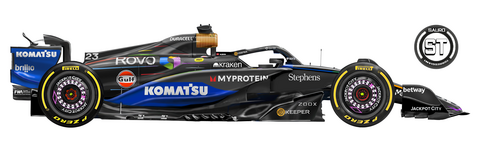

WILLIAMS FW47
PARTNERS
Atlassian • Komatsu • Kraken • My Protein • Gulf • Duracell
Stephens • Santander • Vast • Keeper • THG Ingenuity • FanCapital
Reviva • ZOOX • Dorilton Ventures • Puma • Pirelli • Life Fitness • Spinal Injuries Association
Chassis construction: Monocoque construction laminated from carbon epoxy and honeycomb surpassing FIA impact and strength requirements
Front suspension: Double wishbone, push-rod activated springs and anti-roll bar
Rear suspension: Double wishbone, pull-rod activated springs and anti-roll bar
Transmission: Mercedes-AMG F1 eight speed forward, one reverse unit with carbon fibre maincase. Sequential, semi-automatic, hydraulic activation gear selection
Clutch: Carbon multi-plate
Dampers: Hydraulic
Wheels: F1 Standard Supply Component
Tyres: Pirelli Fronts: 305/720-18, Rears: 405/720-18
Brake system: Brembo 6 piston front and rear callipers, with carbon discs and pads
Electronic systems: FIA SECU standard electronic control unit
Cooling system: Aluminium oil, water, charge air, ERS and gearbox coolers
Cockpit: Six-point driver safety harness with 75mm shoulder straps & system, removable anatomically formed carbon fibre seat
Power Unit: Mercedes-AMG F1 M16 E Performance
Fuel Injection: High-pressure direct injection (max 500 bar, one injector/cylinder), Pressure charging Single-stage compressor and exhaust
turbine on a common shaft, Max rpm exhaust turbine 125,000 rpm
ERS: Mercedes-AMG HPP
Weight: FIA minimum
Dimensions: Overal height: 970mm, overall width: 2000mm
